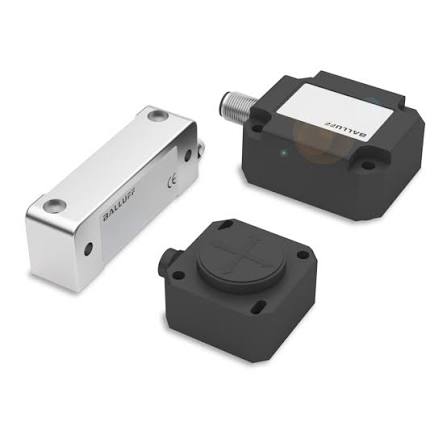

JUAL BALLUFF BSI0002 - BSI R11A0-XB-CXS045-S75G
JUAL BALLUFF BSI0002 - BSI R11A0-XB-CXS045-S75G - Single and dual axis inclinometers
| Order Code | BSI0002 |
| BSI R11A0-XB-CXS045-S75G | |
| Cattegory | Very accurate cubic version with one fluid-based measuring axis |
|
Sensors
|
|
|
Inclination sensors
|
|
|
Single and dual axis inclinometers |
|
| Manufacturer | BALLUFF |
| Key features | |
| Measuring principle | Fluid |
| Measuring axes | 1 |
| Measuring range | -45...45° |
| Operating voltage Ub | 10...30 VDC |
| Interface | Analog, current 4…20 mA |
| Resolution | ≤ 0.01 ° |
| Accuracy | ±0.1 % FS min. 0.1 ° |
| Connection | Connector, M8x1 |
| Housing material | Aluminium |
| Ambient temperature | -40...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE |
| WEEE |
The special features of our inclination sensors
Fluid-based
· High repeat accuracy and precision
· Extremely low temperature drift
· Robust and compact metal housing
· Simple mounting – four mounting holes in the housing
MEMS-based
· Interfaces: 4-20 mA, 0-10 V
· Large selection of different measurement ranges
· Centering function (calibration) for flexible installation
· Two variants for different requirements
| BSI0002 | BSI R11A0-XB-CXS045-S75G |
| BSI0003 | BSI R11A0-XXR-CXP360-S75G |
| BSI0004 | BSI R11A0-XB-CXP360-S75G |
| BSI0005 | BSI R65K0-XA-MXS090-S115 |
| BSI0006 | BSI R65K0-XB-MYS015-S115 |
| BSI0007 | BSI R65K0-XB-MYS030-S115 |
| BSI0008 | BSI R65K0-XB-MYS045-S115 |
| BSI0009 | BSI R65K0-XB-MYS090-S115 |
| BSI000A | BSI R65K0-XA-MYS015-S115 |
| BSI000F | BSI R65K0-XA-MYS090-S115 |
| BSI000H | BSI Q41K0-XB-MXP360-S92 |
| BSI000J | BSI Q41K0-XB-MXS015-S92 |
| BSI000K | BSI Q41K0-XB-MXS030-S92 |
| BSI000L | BSI Q41K0-XA-MXP360-S92 |
| BSI000M | BSI Q41K0-XA-MXS015-S92 |
| BSI000N | BSI Q41K0-XA-MXS030-S92 |
| BSI000P | BSI Q41K0-XB-MXS045-S92 |
| BSI000R | BSI Q41K0-XB-MXS090-S92 |
| BSI000T | BSI Q41K0-XA-MXS045-S92 |
| BSI000U | BSI Q41K0-XA-MXS090-S92 |
| BSI000W | BSI Q41K0-XB-MYS015-S92 |
| BSI000Y | BSI Q41K0-XB-MYS030-S92 |
| BSI000Z | BSI Q41K0-XA-MYS015-S92 |
| BSI0010 | BSI Q41K0-XA-MYS030-S92 |
| BSI0011 | BSI Q41K0-XB-MYS045-S92 |
| BSI0012 | BSI Q41K0-XB-MYS090-S92 |
| BSI0013 | BSI Q41K0-XA-MYS045-S92 |
| BSI0014 | BSI Q41K0-XA-MYS090-S92 |
| BSI0015 | BSI R65K0-XB-MXP360-S115 |
| BSI0016 | BSI R65K0-XA-MXP360-S115 |
| BSI0018 | BSI R65K0-XB-MXS030-S115 |
| BSI0019 | BSI R65K0-XB-MXS045-S115 |
| BSI001A | BSI R65K0-XB-MXS090-S115 |
| BSI001E | BSI R65K0-XB-MXS015-S115 |
| BSI001F | BSI R65K0-XA-MXS045-S115 |
| BSI001J | BSI R11A0-XB-CXP360-S75G-101 |
